Firmware Management

67 / 0

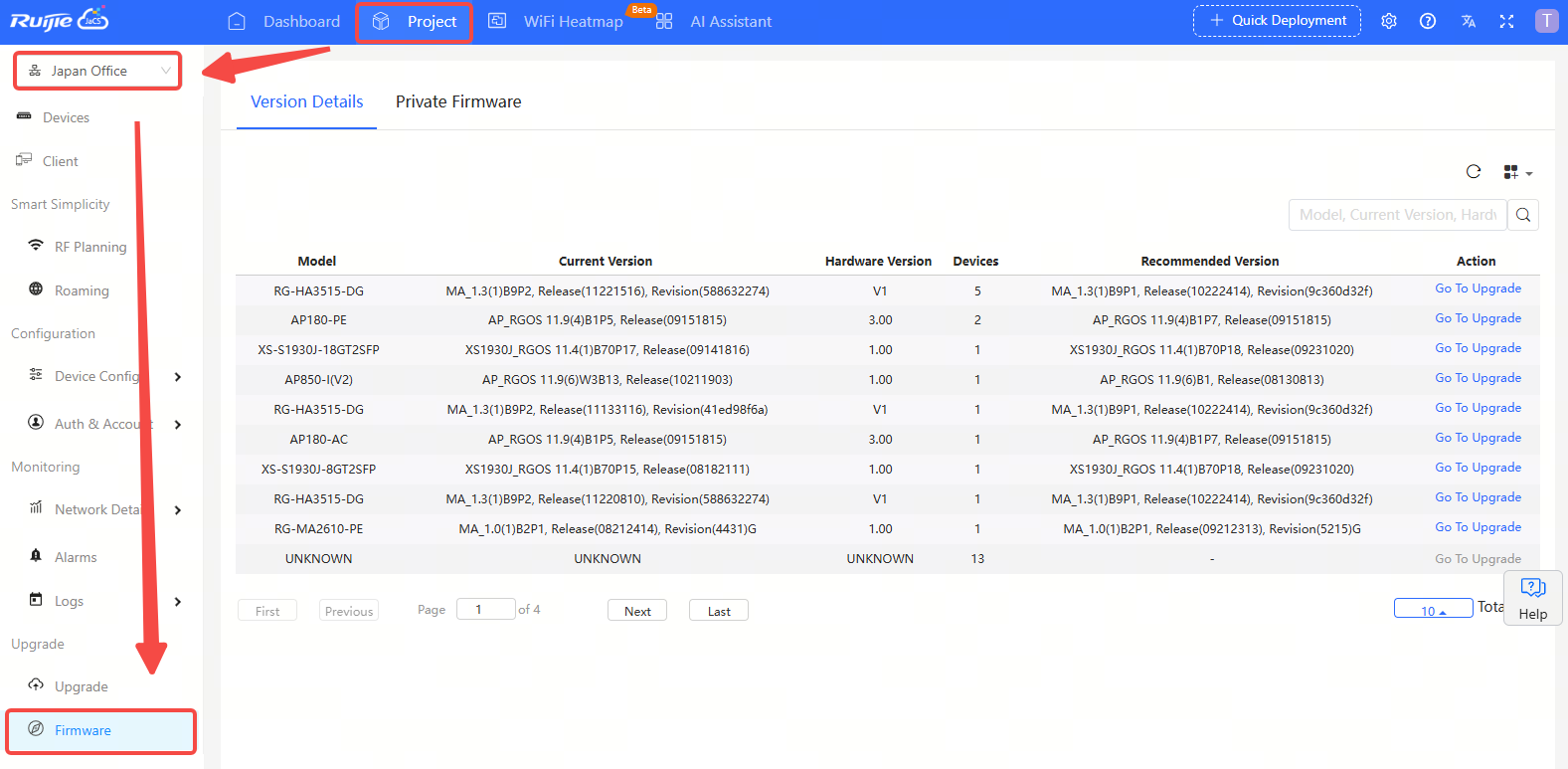

Click Project to go to the project interface. After selecting a project, click Firmware to manage the firmware in the specified project. The firmware management interface consists of two parts: Version Details and Private Firmware.



Version Details displays the firmware versions installed on all devices in the project. Click Go To Upgrade in the Action column to go to the upgrade interface. For detailed upgrade steps, please refer to Upgrading Device.



Private Firmware list displays the private firmware uploaded by all accounts under the tenant.



Uploading a Private Firmware Version

Step 1:  Click Upload Firmware to go to the upload interface.



Step 2: Click 'tar.gz' or '.bin' File and select the firmware version to be uploaded.





Step 3: Click Import to upload the firmware version. You can add description information for the firmware version (up to 255 characters can be entered.)



Step 4: Wait for the firmware version to be uploaded.



Step 5: When the “Upload firmware succeeded” prompt appears, click to close the prompt box to complete the operation.



Once a firmware has been uploaded, it is displays in the Private Firmware list.



Deleting a Private Firmware Version:

Step 1: Select the firmware version to be deleted. Multiple selections are supported. If you need to select all, check the Select all checkbox.



Step 2: Click Delete.



Step 3: When the confirmation prompt appears, click OK.



Step 4: When the “Firmware is deleted” prompt appears, click X to close the prompt box and complete the operation.
