Contact/Contact Group Management

43 / 0

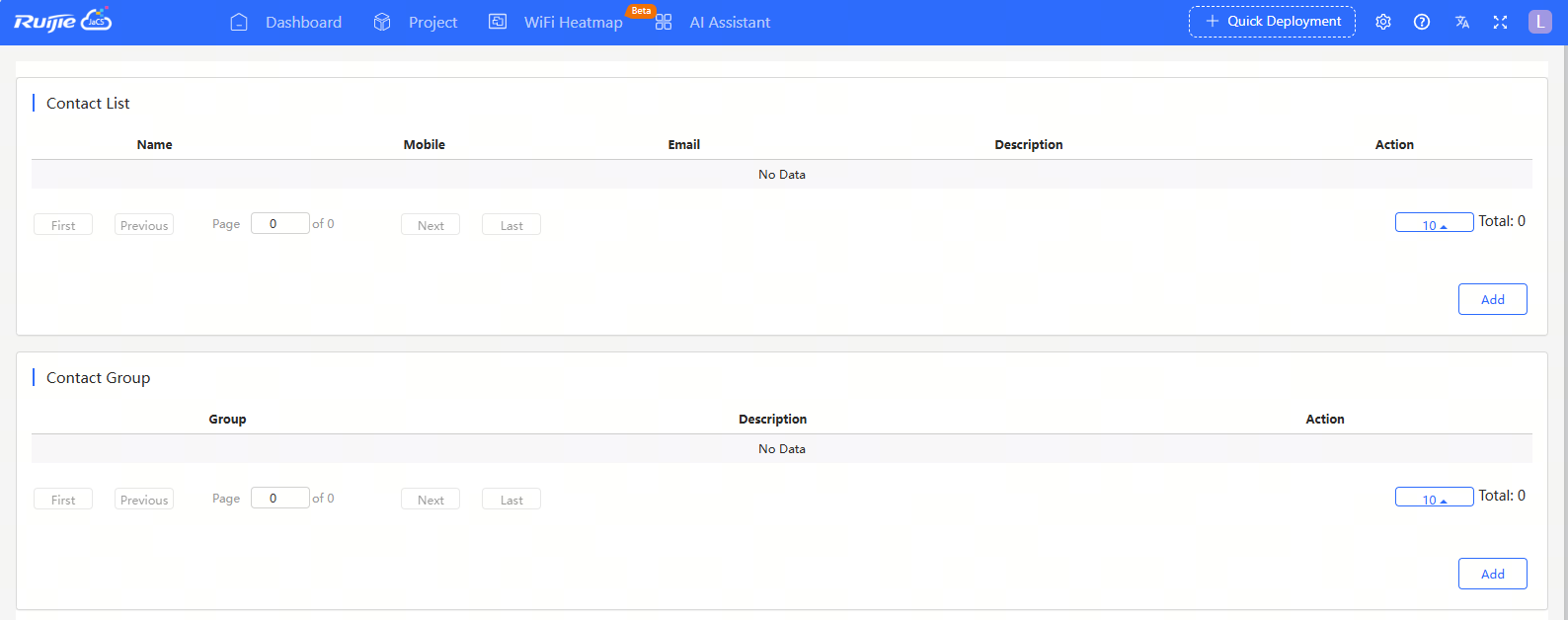

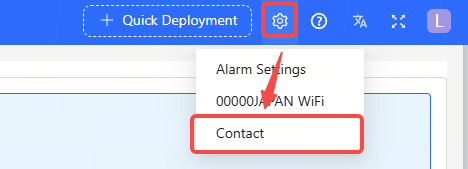

Click  and then click Contact to enter the contact management interface. In this interface, you can create contacts and contact groups for receiving alarm information.





Adding a Contact

Follow the steps below to add a contact:

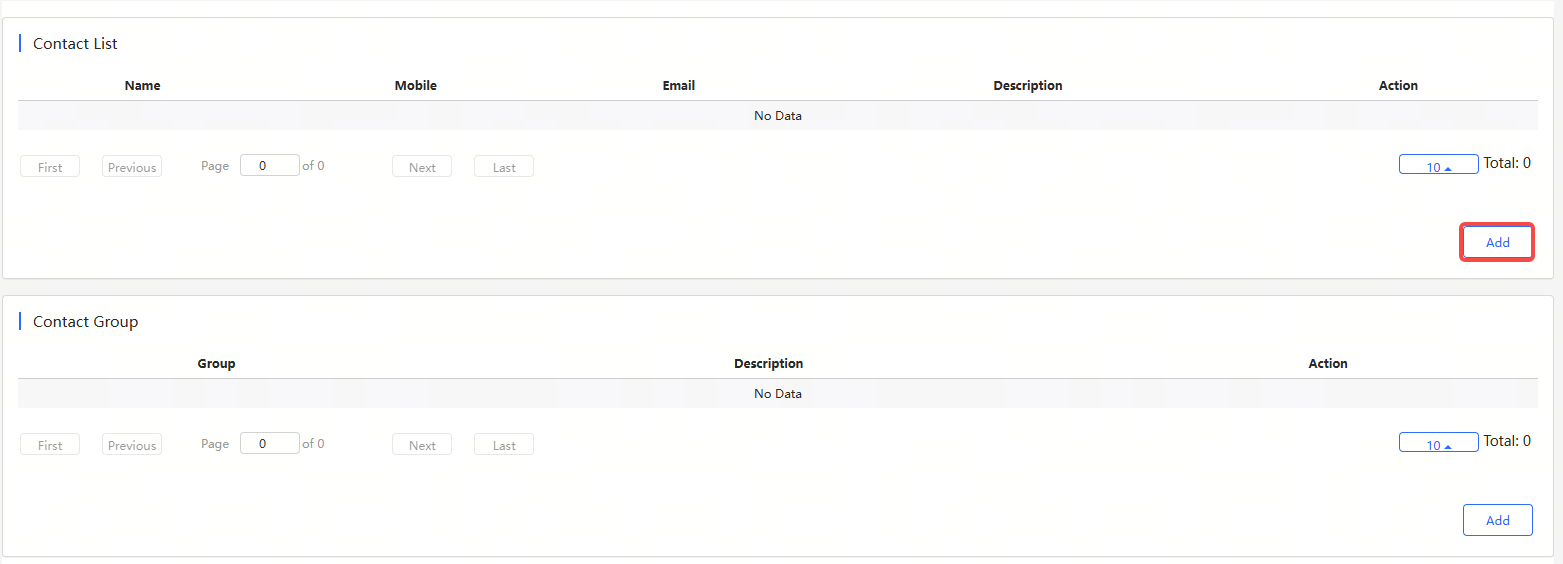

Step 1: Click Add



Step 2: Fill in the information, and the click Save. Name, email address, mobile phone number and description are required.



Step 3: When the "Added succeeded" prompt appears, click X to close the prompt box. The created contact will be displayed in the Contact List.



To edit a contact, click the  in the Action column; To delete a contact, click  to delete it.



Creating a Contact Group

Follow the steps below to create a new contact group:

Step 1: Click Add.



Step 2: Enter a contact group name and description. Both name and description are required. After filling in the form, click Save to complete the operation.



Step 3: When the successful addition prompt appears, click X to close the prompt box and complete the operation.



Step 4: Once a contact group has been added, it will be displayed in the contact group list. To edit its information, click  in the Action column. To delete the contact group, click  in the Action column.



Adding Contacts to a Contact Group

To add a contact to an existing contact group:

Step 1: In the Contact Group list, click  in the Action column of a contact group.



Step 2: The contacts that have been created will be displayed in the All Contacts box. Select the contact you want to add and click Add to Group to add it to the contact group.



Step 3: After adding the contact, click Save.



Step 4: When the “Add succeeded” prompt appears, click X to close the prompt box and complete the operation.



Removing a Contact from a Contact Group

To remove a contact from a contact group:

Step 1: In the Contact Group list, click  in the Action column of a contact group.



Step 2: After selecting the contact to be removed from the contact group, click Delete from Group



Step 3: When the “Delete succeeded” prompt appears, click X to close the prompt box.



Step 4: The removed contacts will be displayed in the All Contacts box on the right. Click Save.



Step 5: After the “Update Succeeded” prompt appears, click X to close the prompt box and complete the operation.
