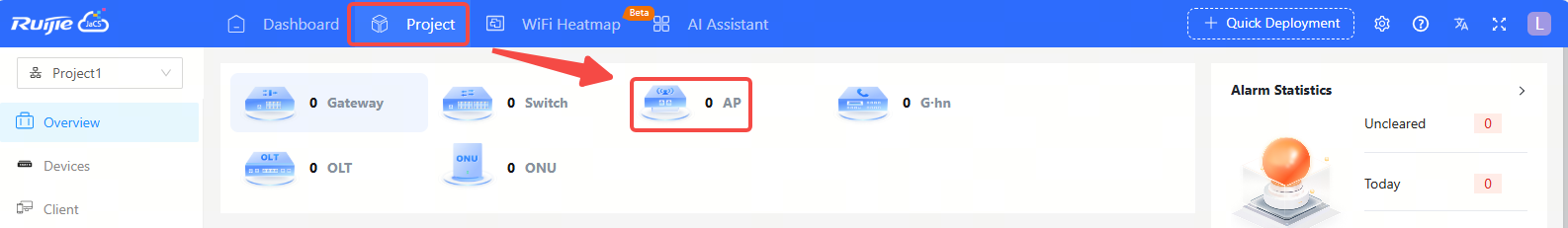

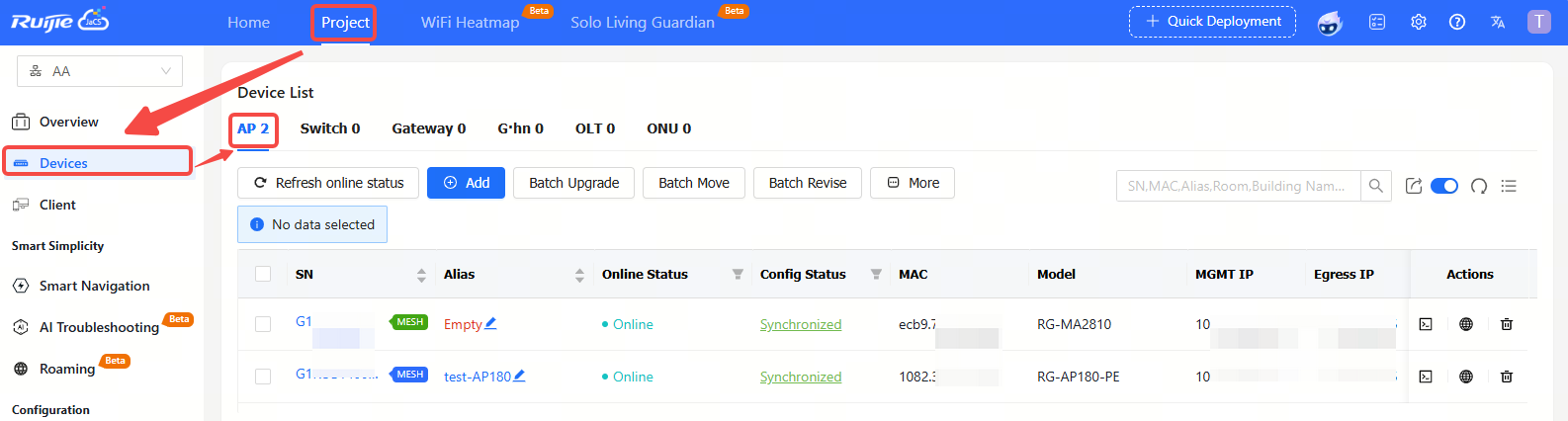

After creating a project, click Project > AP to enter its AP management interface.

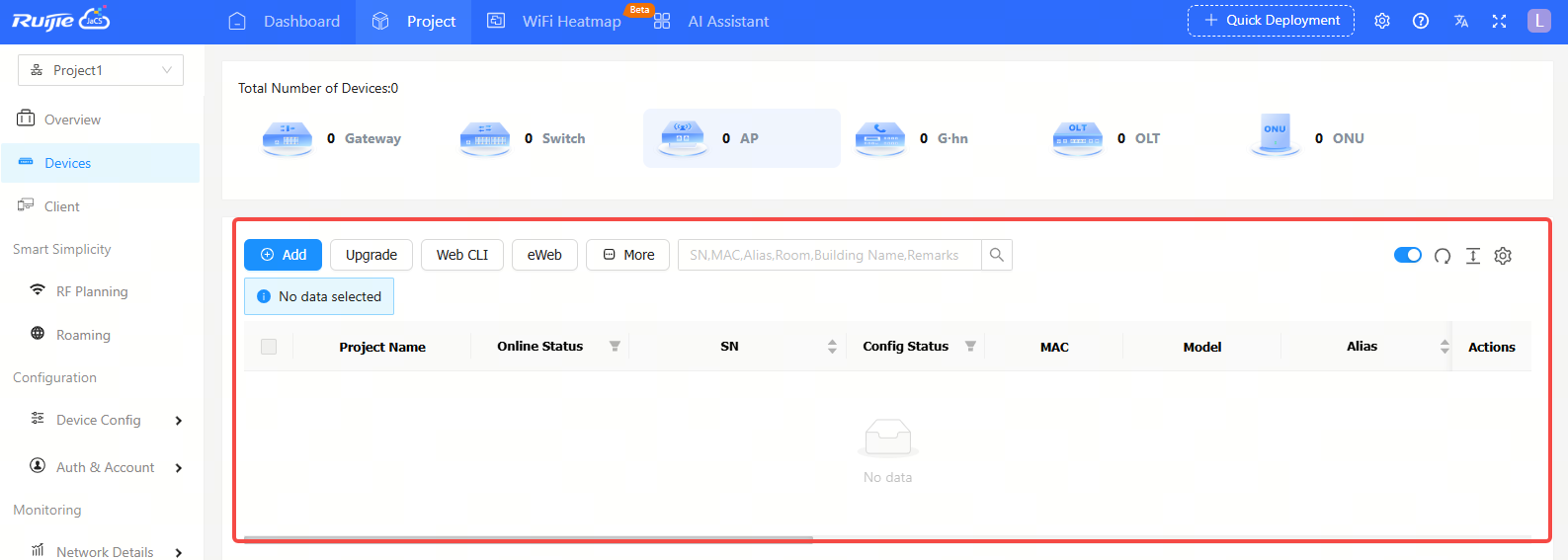

Item Description:

Project Name: Displays the names of the projects where APs reside.

SN: Displays the serial numbers of APs. Click the SN of an AP to display its detailed information.

Online Status: Displays the online status of APs on the cloud. The status of the device includes: Online/Offline/Not Online Yet. Click the filter icon to filter devices by online status.

• Online: The device is online and communicating with the cloud normally. After the device is online, it will maintain a connection with the cloud every 3 minutes.
• Offline: The device has been disconnected from the cloud, but the physical connection is not affected. If the device fails to connect for three consecutive times, it will change from the Online state to the Offline state.
• Not Online Yet: The device has never been connected to the cloud. When an AP is added to a project on the cloud, but is not powered on, its status will also be shown as “Not Online Yet”.

Config Status: Displays the configuration status of APs. The configuration status includes: Switching mode/Not Synchronized/Synchronizing/Synchronized/Synchronize Failed. Click the filter icon  to filter devices according to their configuration status.

MAC: Displays the MAC addresses of APs.

Model: Displays AP models.

Alias: Displays the aliases of APs.

MGMT IP: Displays the management IP addresses of APs.

Egress IP: Displays the egress IP addresses of APs.

Firmware Version: Displays the firmware versions of APs.

Last See On: Displays the last online time of the APs.

Actions: Delete button is available on the Action column. Click the delete button to remove the device from the project.

Button Description:

   : Add button. Click this button to enter the device adding interface.

   : Upgrade button. After selecting the device, click this button to remotely upgrade the device.

    :  Web CLI button. Click this button to enter WEB CLI page to deliver configurations to the device.

  :  eWeb button. Select an AP, and click this button to can access the eWeb of the device.

   :  Click this button to display more operation buttons, including move to, delete, reboot, set initial settings and restore factory settings.

   : Automatic refresh switch button. The automatic refresh function is enabled by default. When it is enabled, the AP device list will automatically refresh once every minute.

   : Refresh button. Click this button manually to refresh the AP device list.

   : Row height adjustment button. Click this button to adjust the row height.

   : Click this button to customize the displayed items in the AP list.

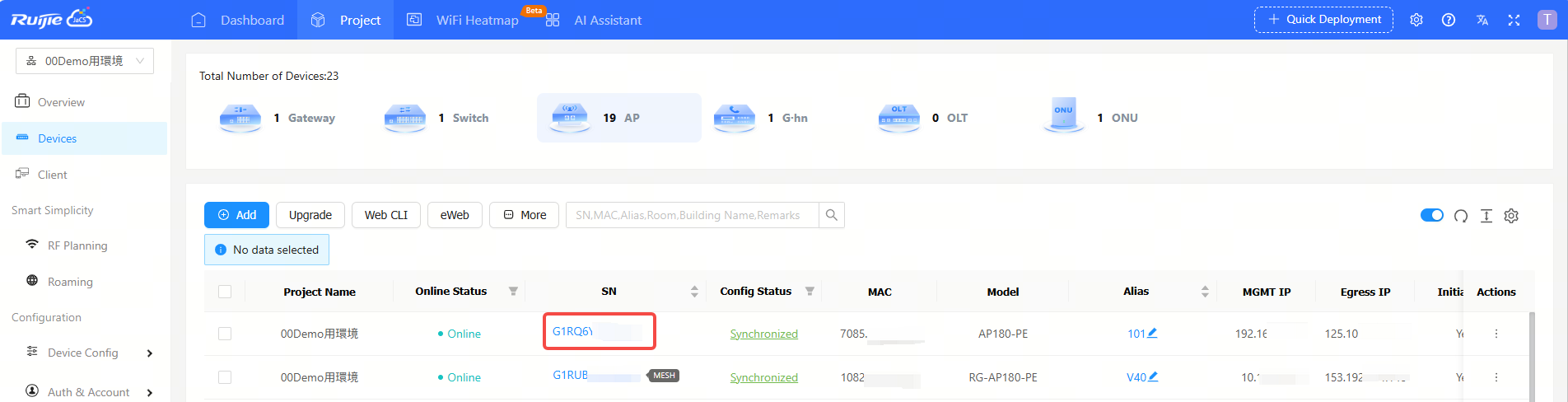

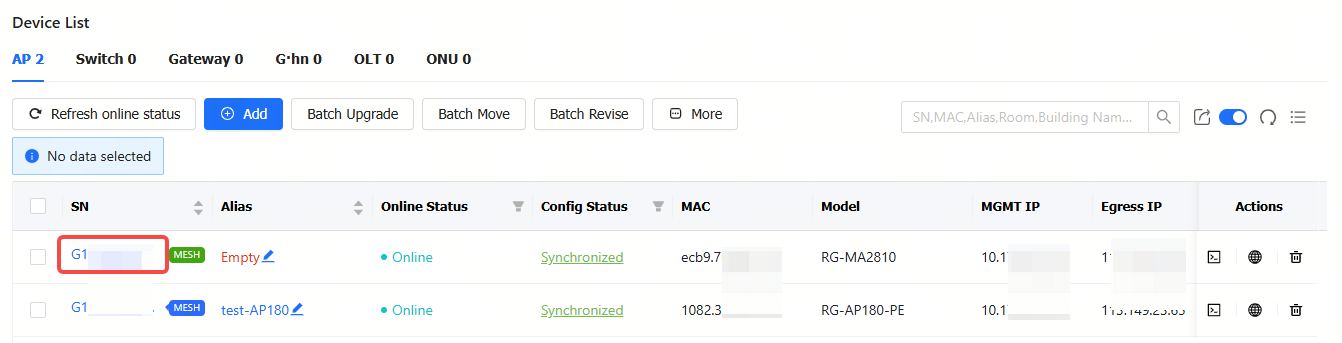

After clicking the SN of a device in the AP list, you can view its details information.

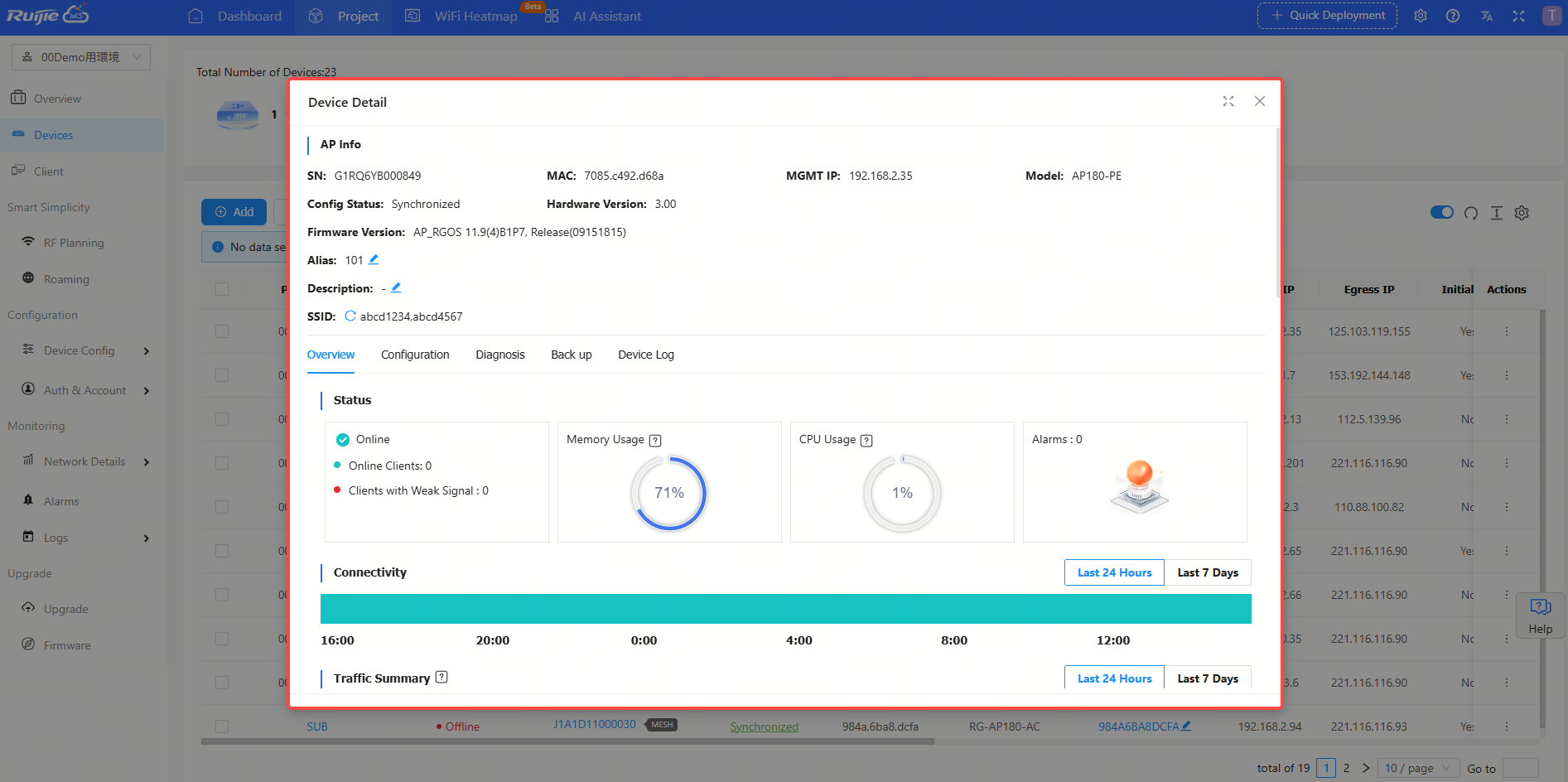

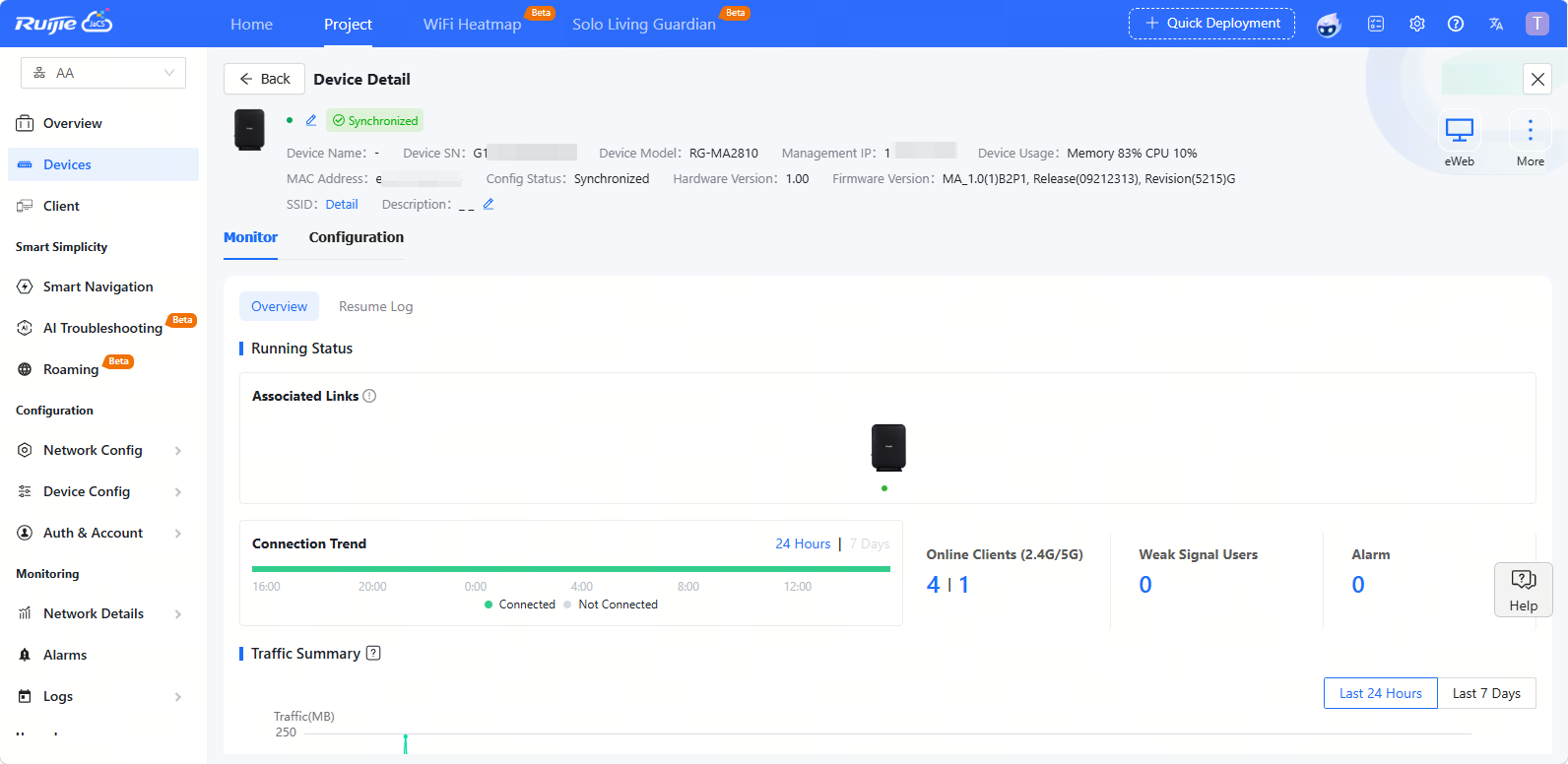

(1）Overview Tab: In this tab, you can view the device's statistics, including memory usage, CPU usage, alarms, connection status with the cloud platform, traffic information, radio frequency information, client information, etc.

(2) Configuration Tab: In this tab, you can set the AP's eWeb password.

(3) Diagnosis: In this tab, you can diagnose the device through the Web CLI, tunnels and log collection.

(4) Back up: In this tab, you can back up and export the current configuration of the AP.

(5) Device Log: In this tab, you can view the logs of the device.

Note: The tabs displayed in the Device Detail page vary from different device models. Please subject to the actual tabs displayed.
