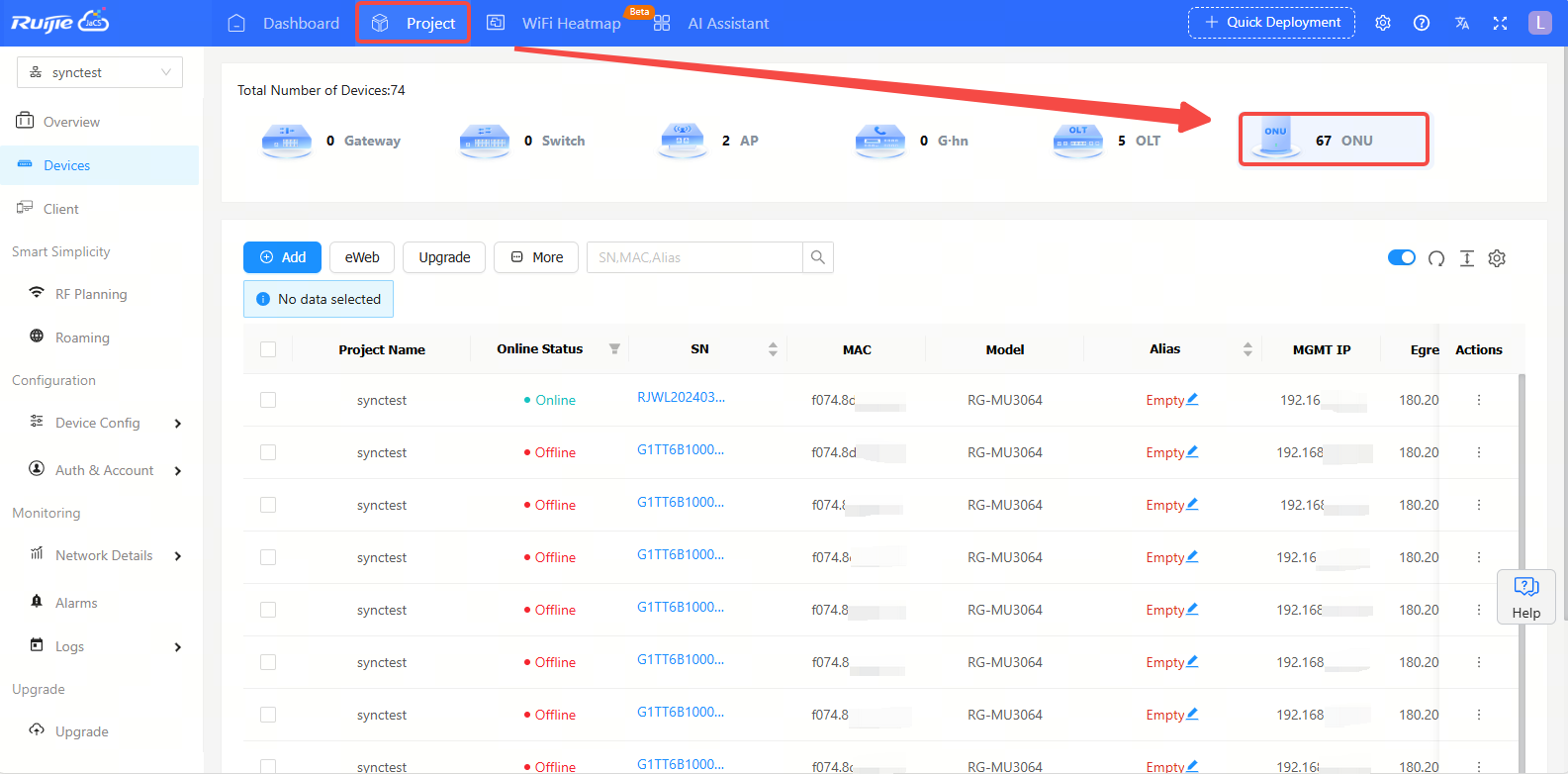

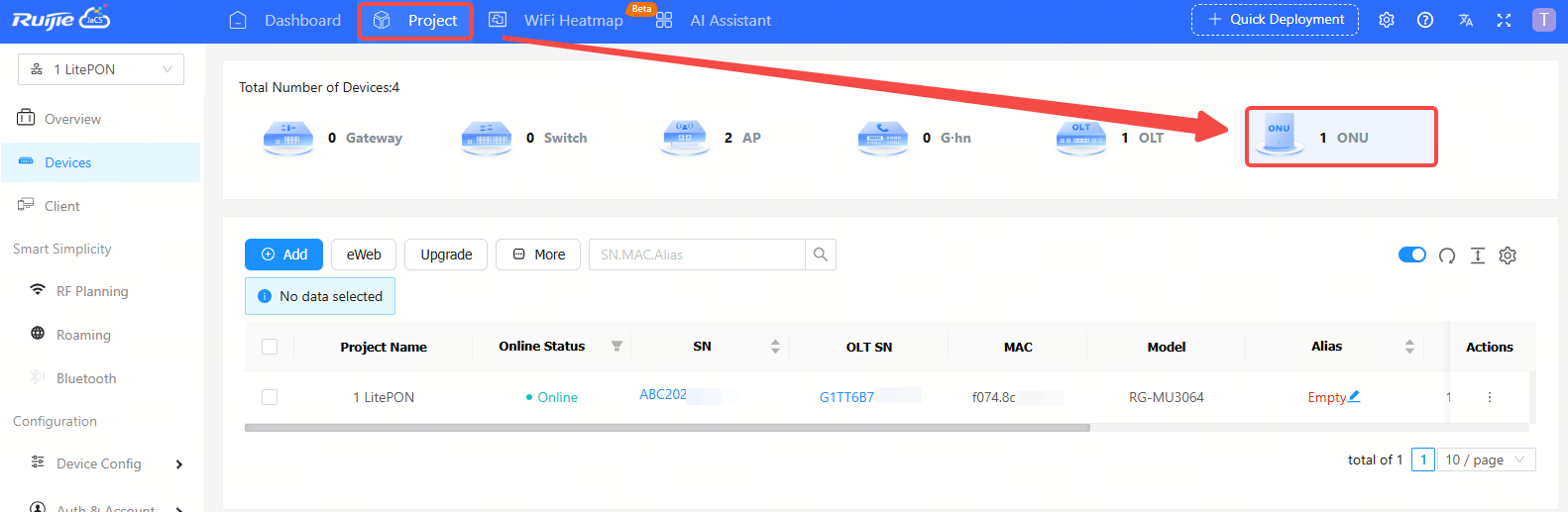

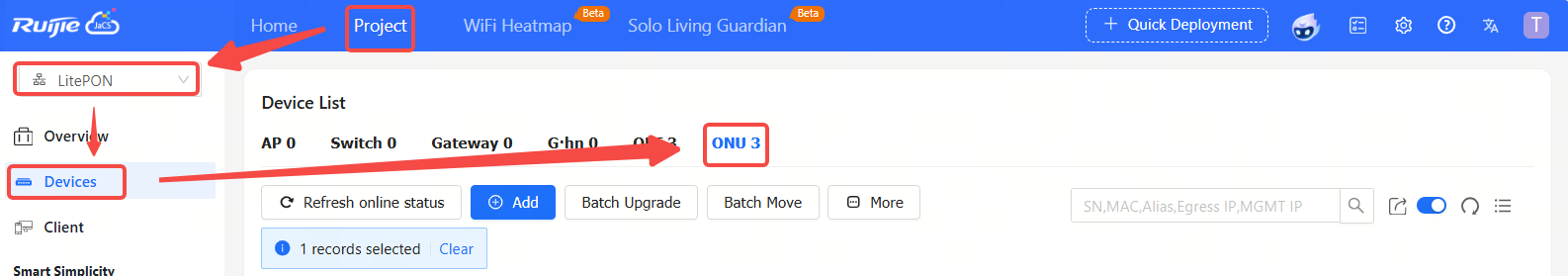

Click Project > ONU to go to the ONU management interface. Click the SN of an ONU, you can view its detailed information.

Item Description:

(1) SN: Displays the SN of the device. Click the SN number of an ONU to view its details.

(2) OLT SN: Displays the SN of the OLT connected to the ONU.

(3) Alias: Displays the aliases of ONUs.

(4) Online Status: Displays the online status of the ONU. The online status of the device includes: Online/Offline/Not Online Yet. Click the filter icon  to filter devices by online status.

(5) MAC: Displays the MAC addresses of ONUs.

(6) Model: Displays ONU models.

(7) MGMT IP: Displays the management addresses of ONUs.

(8) Egress IP: Displays the egress IP addresses of ONUs.

(9) MAC: Displays the MAC addresses of ONUs.

(10) Firmware Version: Displays the firmware version of the ONU.

(11) Last See On: Displays the last online time of the ONU.

(12) Create time: Displays when the device is connected to the JaCS.

(12) Actions:  eWeb and delete icon are available on the Actions column.

Button Description:

 : Add button. Click this button to enter the adding interface.

  : eWeb button. Select an ONU, and click this button to can access its eWeb.

  : Click this button to display more operation buttons, including: Move to, Delete, and Reboot.

 : Automatic refresh switch. The automatic refresh function is enabled by default. When it is enabled, the ONU device list will automatically refresh once every minute.

 : Refresh button. Click this button manually to refresh the ONU list.

 : Search box. Supports searching an ONU by its SN, MAC, or alias.

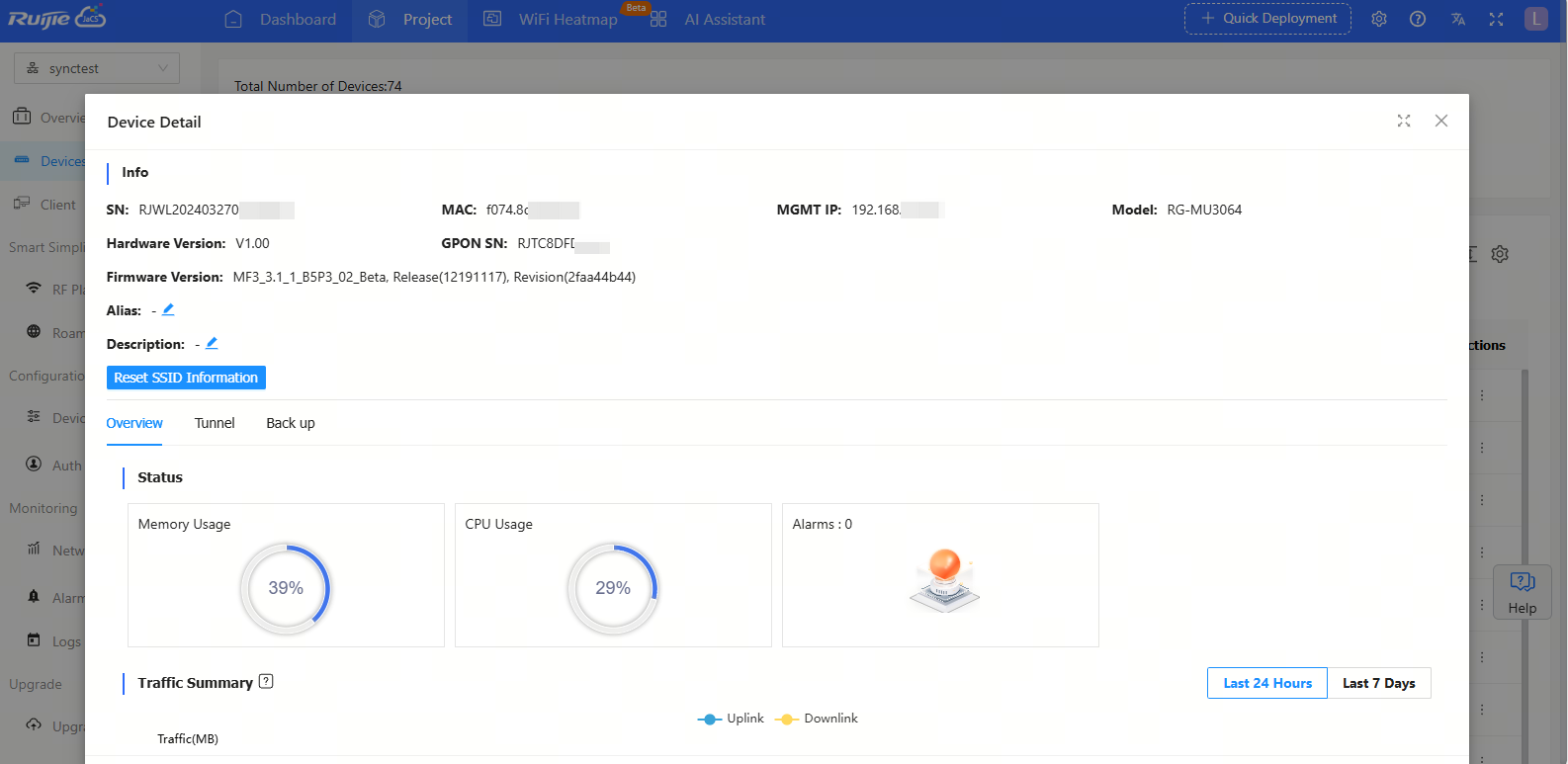

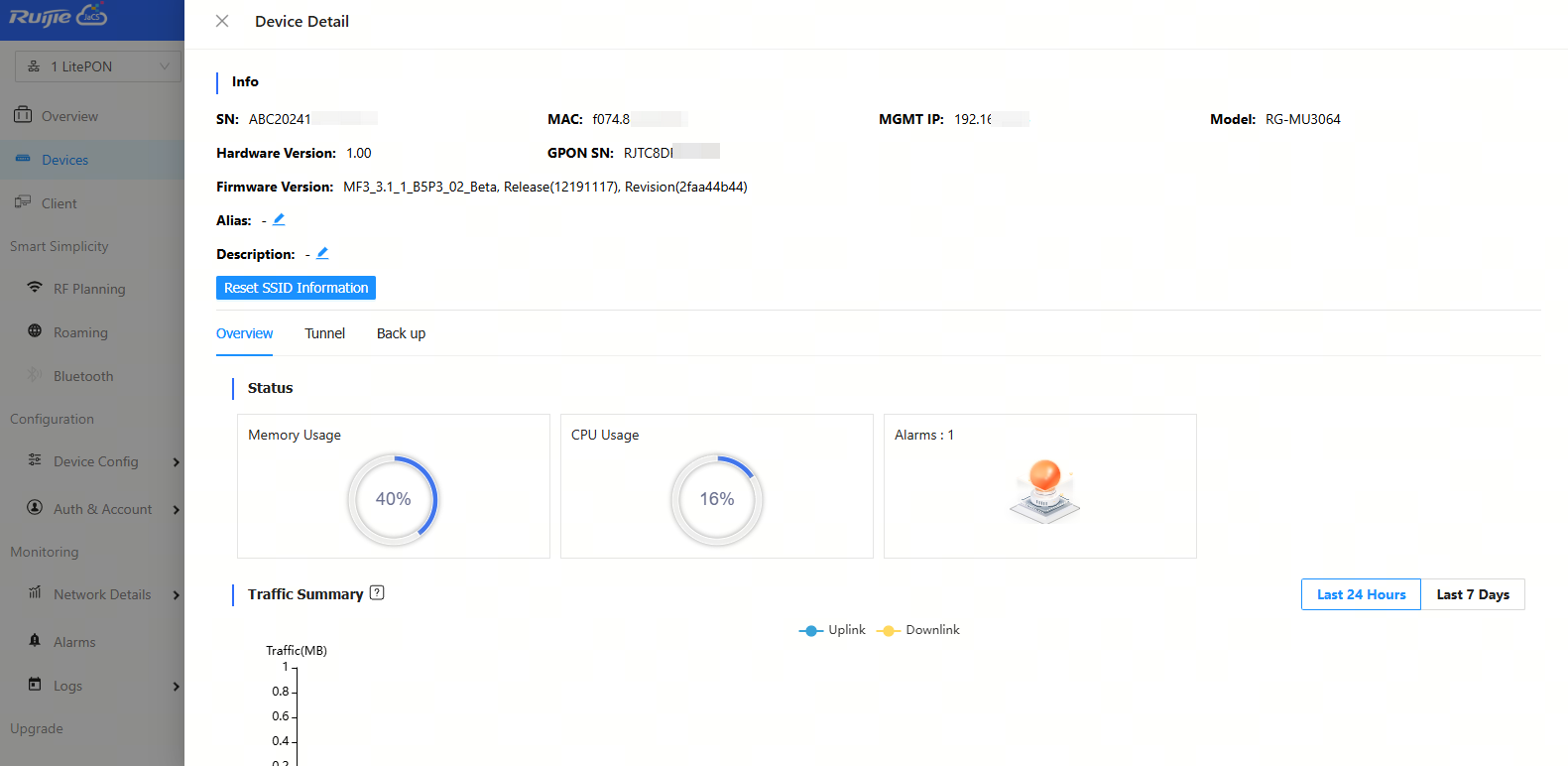

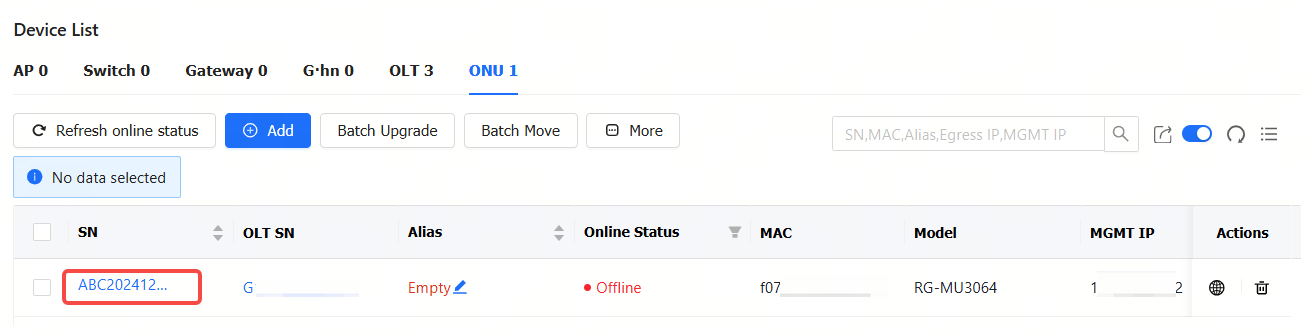

Click the SN of a ONU device to go to the Device Detail page. The Device Detail page contains four parts: Device Information, Overview, Tunnel and Back up.

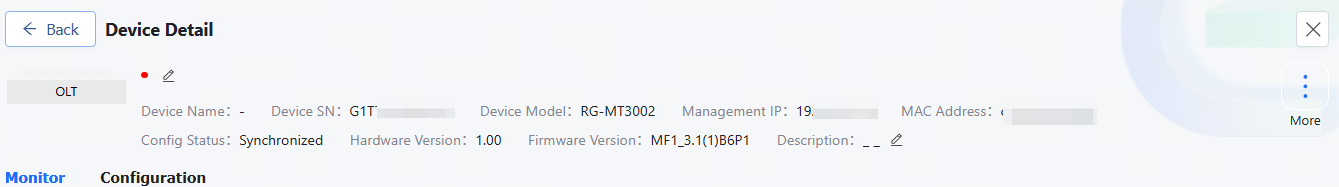

(1) Device Information

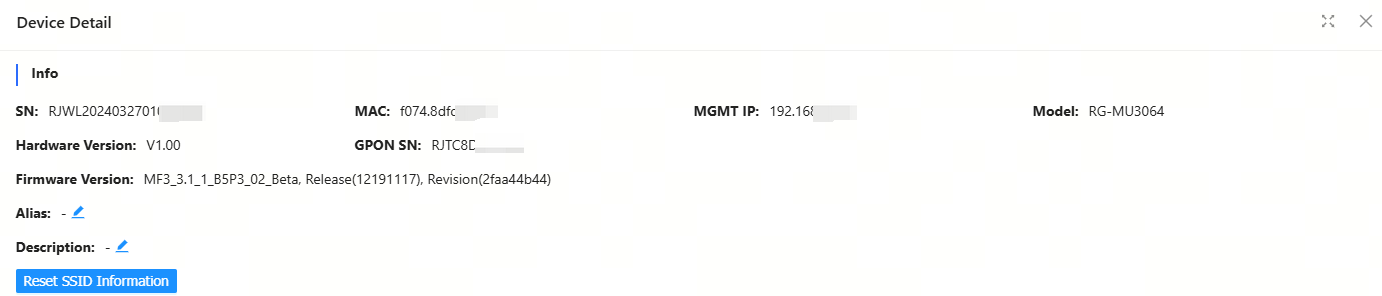

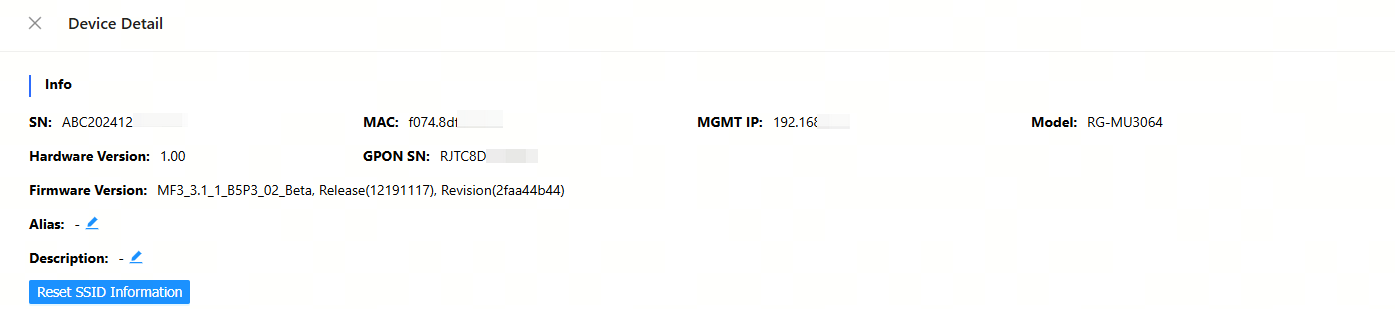

The device information displays the device’s SN, MAC address, MGMT IP address, model, hardware version, firmware version, alias and description. To reset the device SSID, click Reset SSID Information.

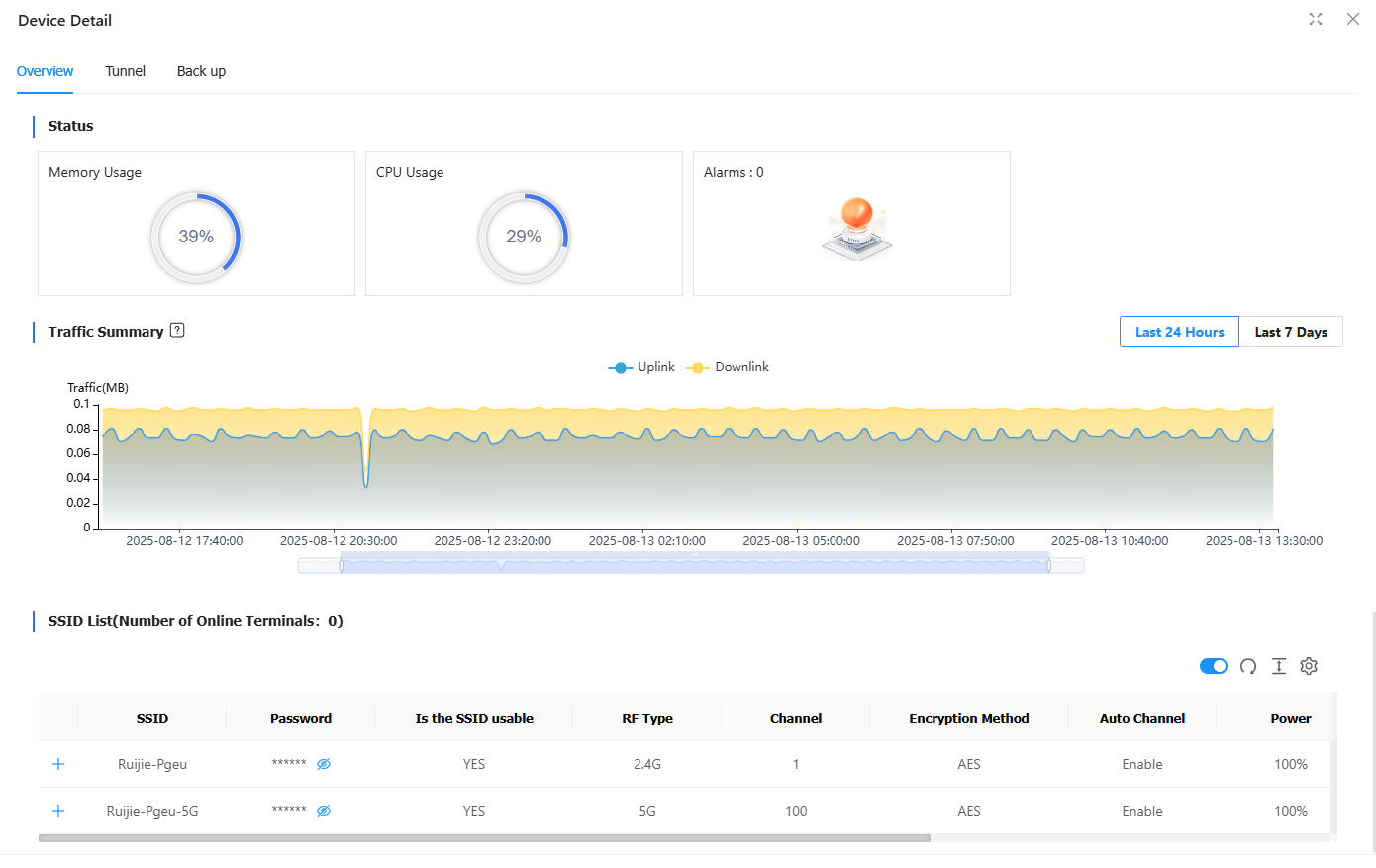

(2) Overview Tab

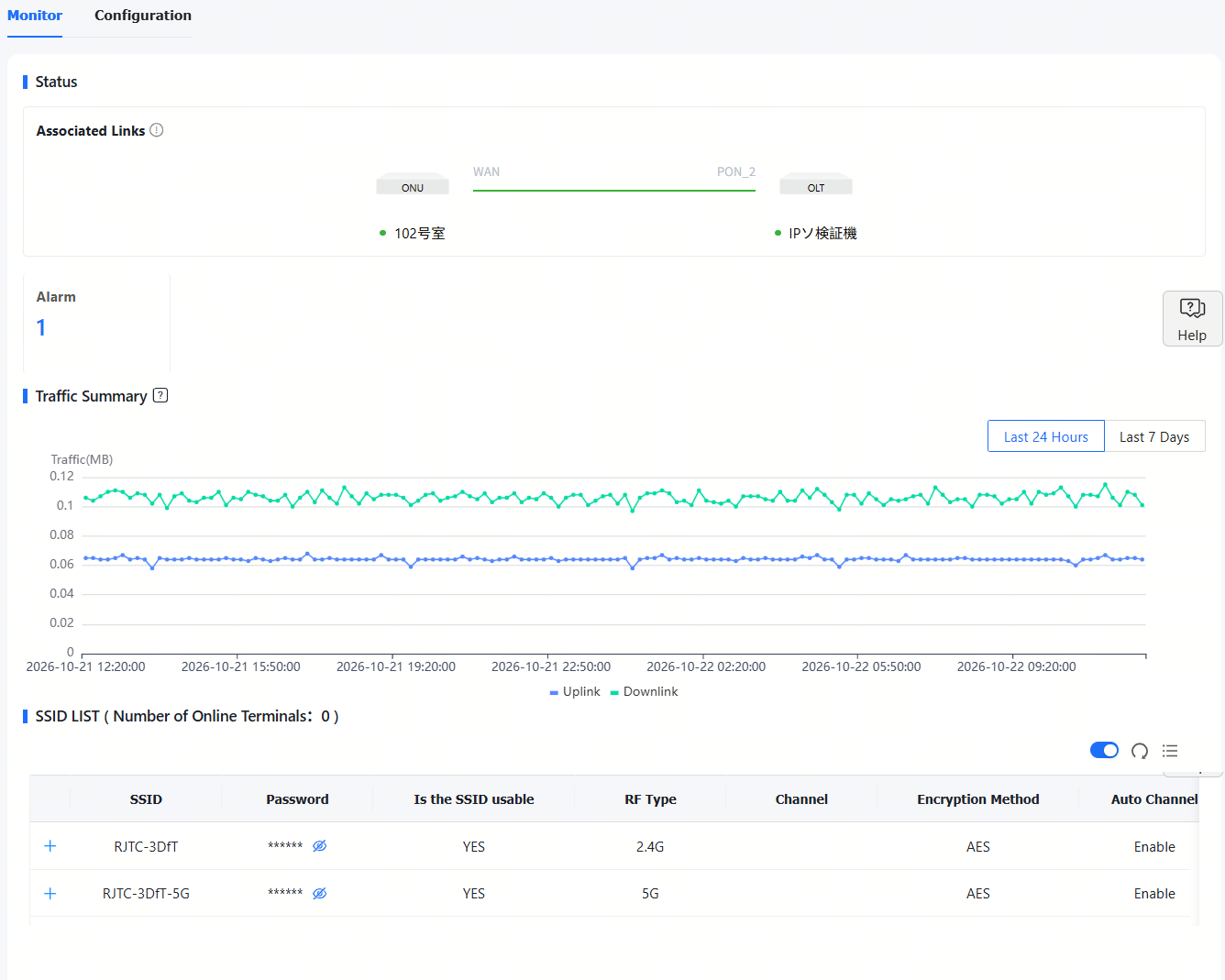

The Overview tab consists of three parts: Status, Traffic Summary and SSID List.

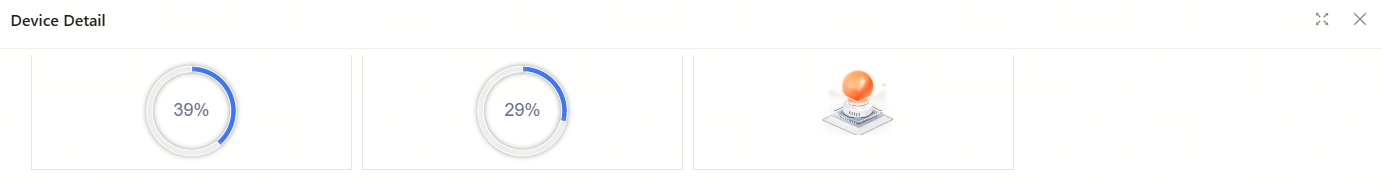

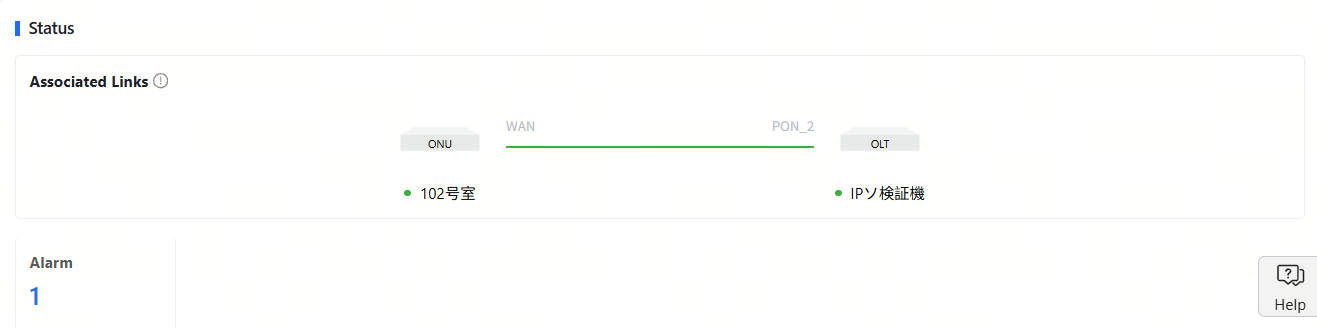

• Status

Displays the associated links and the number of alarms.

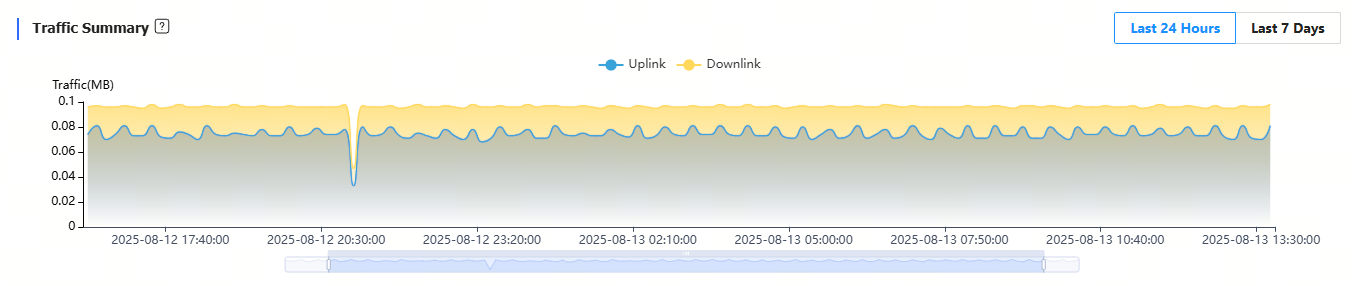

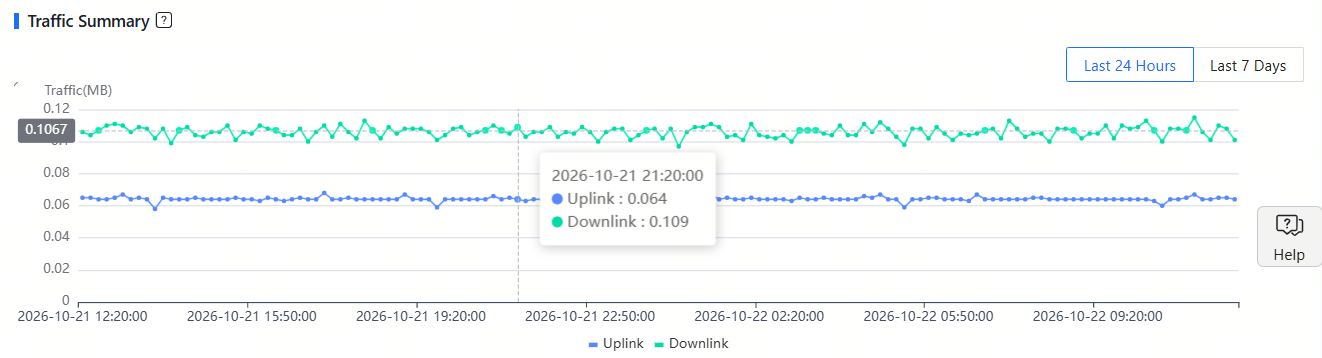

• Traffic Summary

Displays the traffic statistics in the last 24 hours or 7 days. Hover your cursor at a time to check its upnlink and downlink traffic.

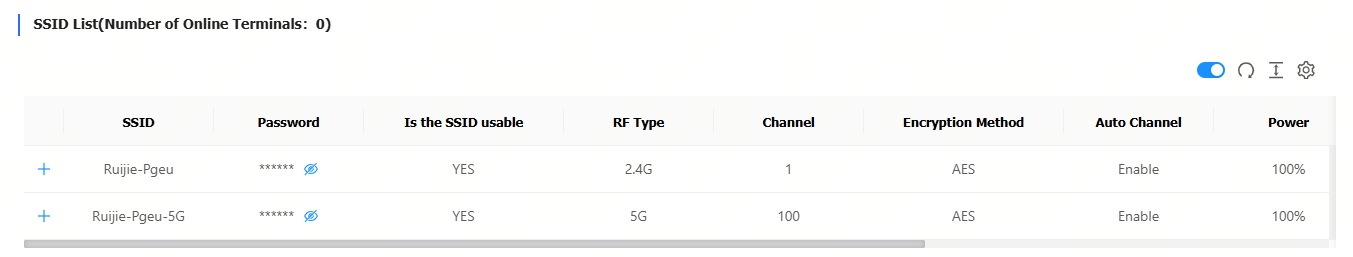

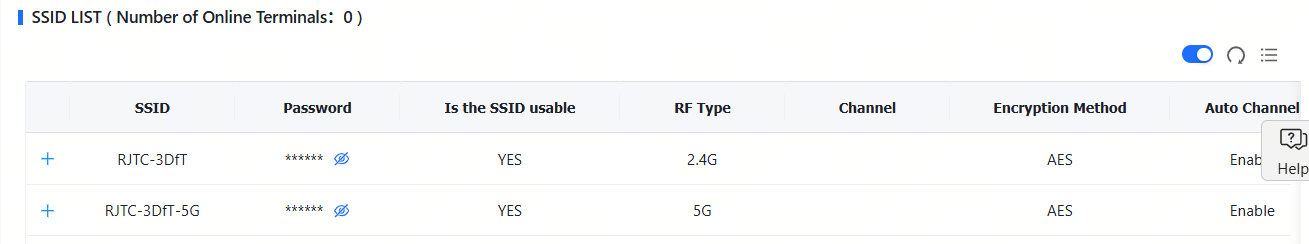

• SSID List

Displays the SSID information of the device.

(3) Tunnel

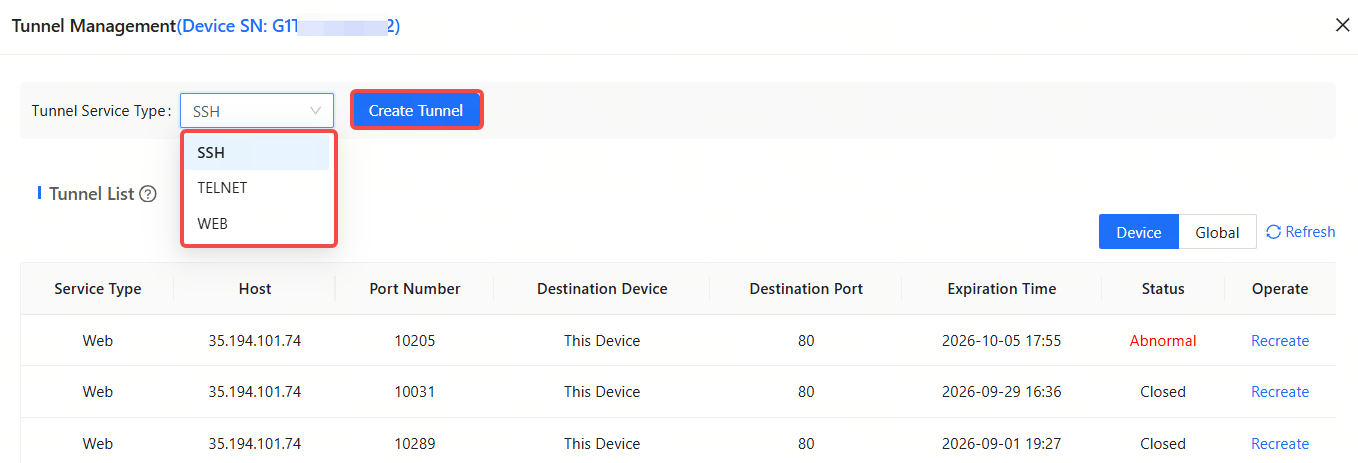

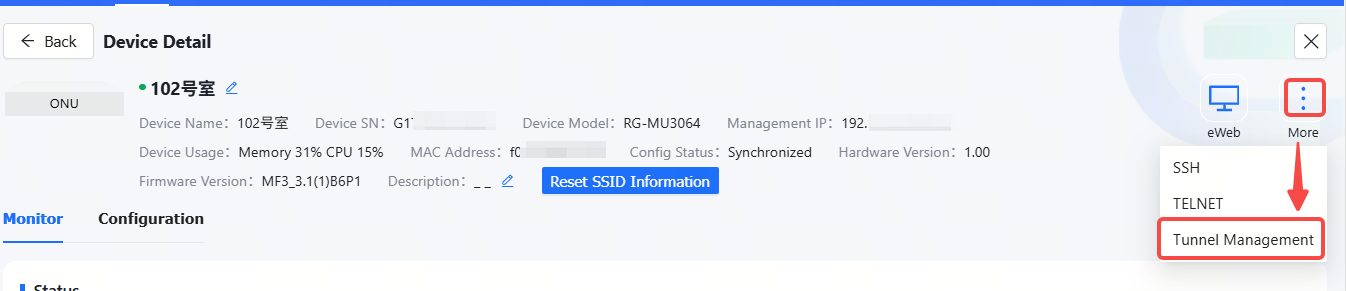

Click More > Tunnel to go to the Tunnel page. Select a tunnel type and then click Create Tunnel to create a tunnel for the device.

(4 )Configuration Tab

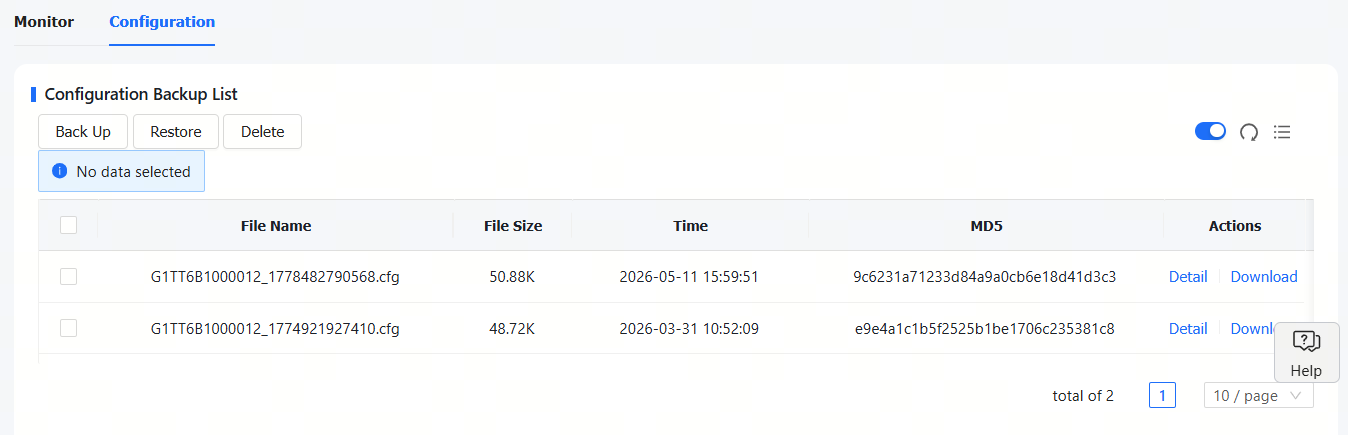

Buttons:

(1) Back Up: Click this button to back up the configuration of the OLT device.

(2) Restore: Select a backup configuration file and then click this button to restore the device to the selected configuration backuped.

(3) Delete: Select a configuration file and then click Delete to delete it.

(4) Detail: Click Detail in the Action column to view the details of the configuration.

(5) Download: Click download button to download the configuration file.
